Huawei eKit AC650-128AP

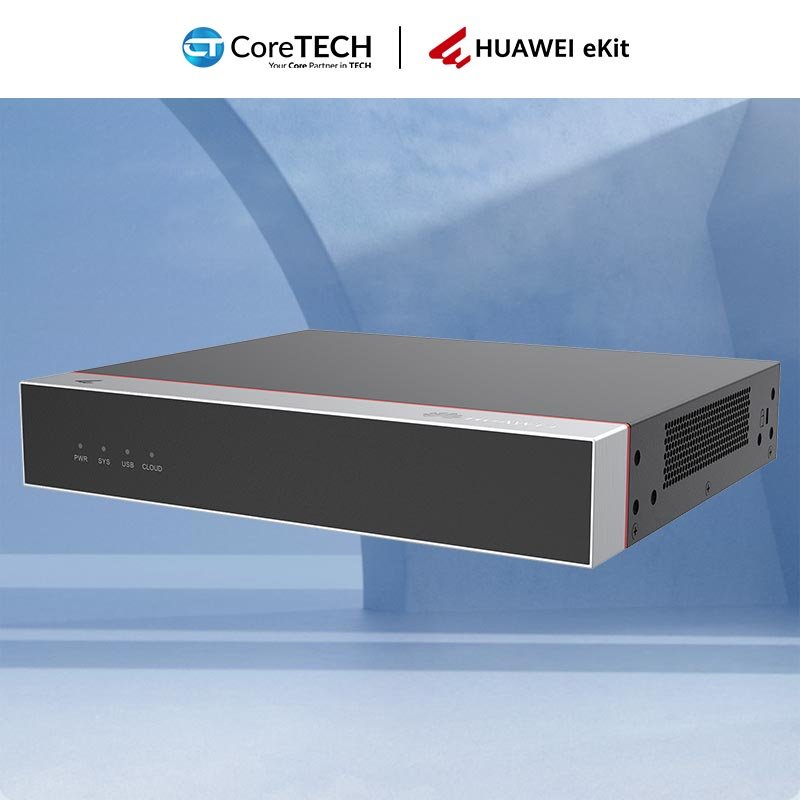

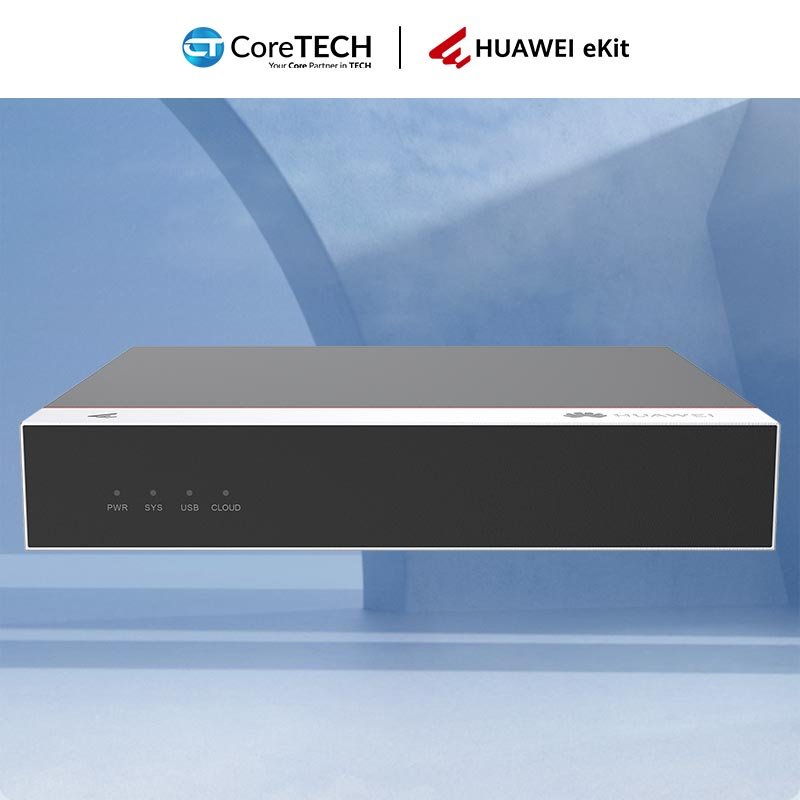

The Huawei eKit AC650-128AP is a compact, high-performance wireless access controller designed for small to medium-sized enterprise networks such as offices, campuses, and hospitality environments. It can manage up to 128 access points simultaneously, delivering centralized control, seamless roaming, and efficient network management for both wired and wireless users.

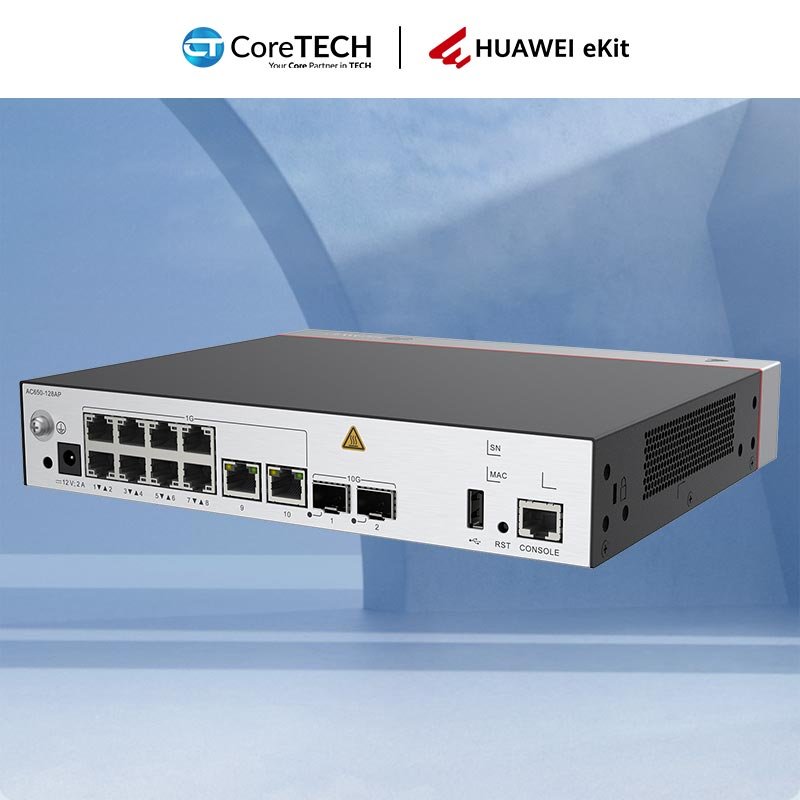

Equipped with multiple Gigabit Ethernet ports and high-speed 10GE uplink interfaces, the AC650-128AP ensures reliable data forwarding and scalable performance, while its integrated switching capability simplifies deployment and reduces infrastructure complexity. With intelligent management features, flexible installation options, and support for cloud-based operations, it provides a powerful and cost-effective solution for building stable, high-density wireless networks.

As the Authorized Elite Distributor of Huawei eKit in Pakistan, CoreTECH provides genuine Huawei eKit solutions with competitive pricing, warranty, and expert technical support, making it the trusted partner for reliable business connectivity.

Manage APs	128
Maximum number of physical ports on the entire device	2 x 10GE (SFP+) + 10 x GE (RJ45)
Dimensions without packaging (H x W x D) [mm(in.)]	Basic: 43.6 mm x 250 mm x 210 mm (1.72 in. x 9.84 in. x 8.27 in.) Maximum: 43.6 mm x 250 mm x 215 mm (1.72 in. x 9.84 in. x 8.46 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	110 mm x 465 mm x 335 mm (4.33 in. x 18.31 in. x 13.19 in.)
Installation Type	Rack,Desk,Wall
Weight without packaging [kg(lb)]	1.9kg
Weight with packaging [kg(lb)]	2.55 kg (5.62 lb)
Maximum power consumption [W]	23.58
Power supply mode	DC power adapter
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
