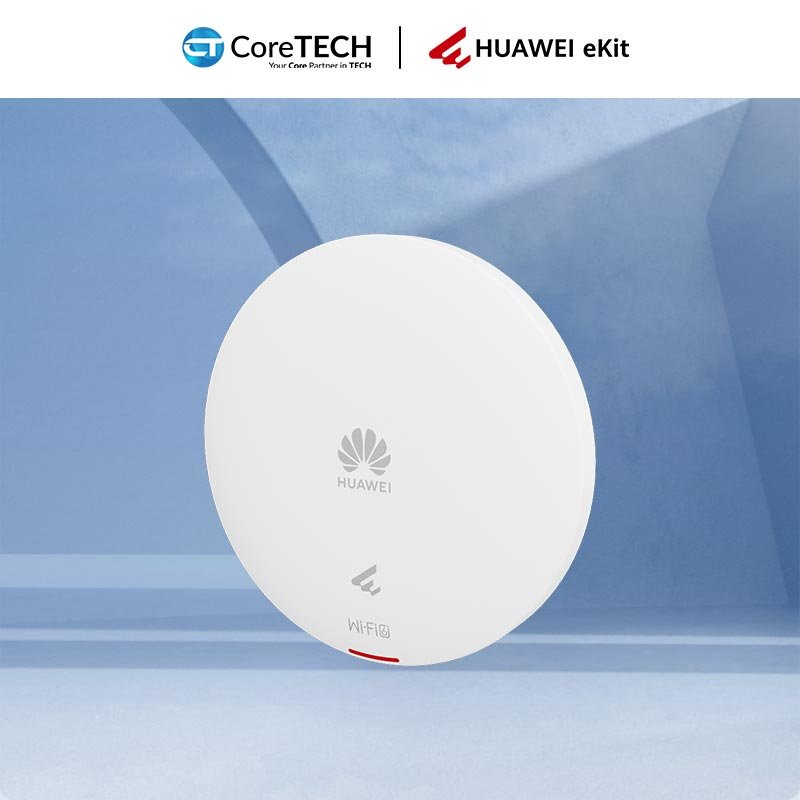

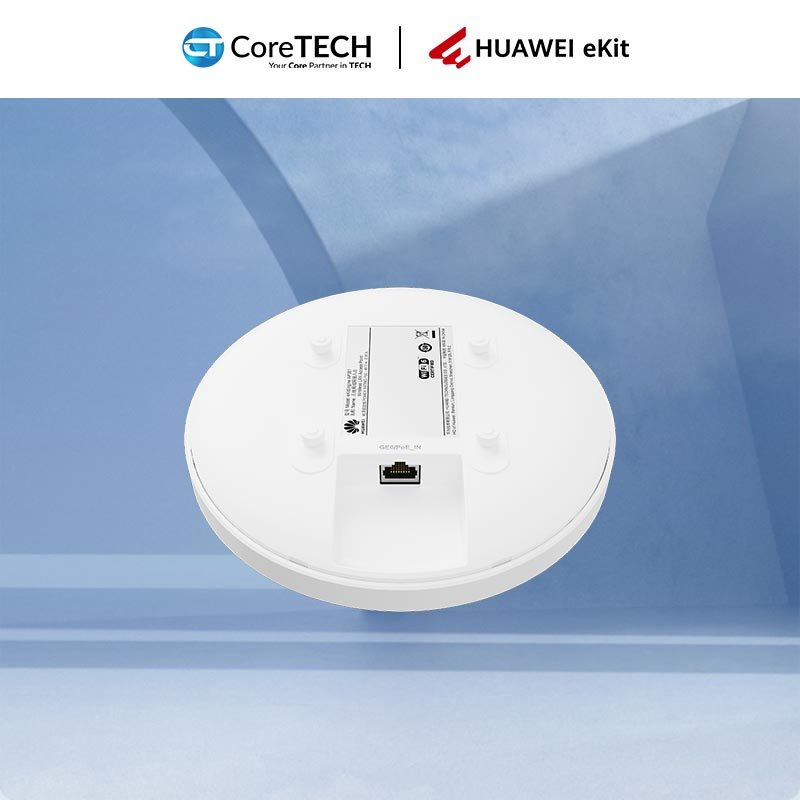

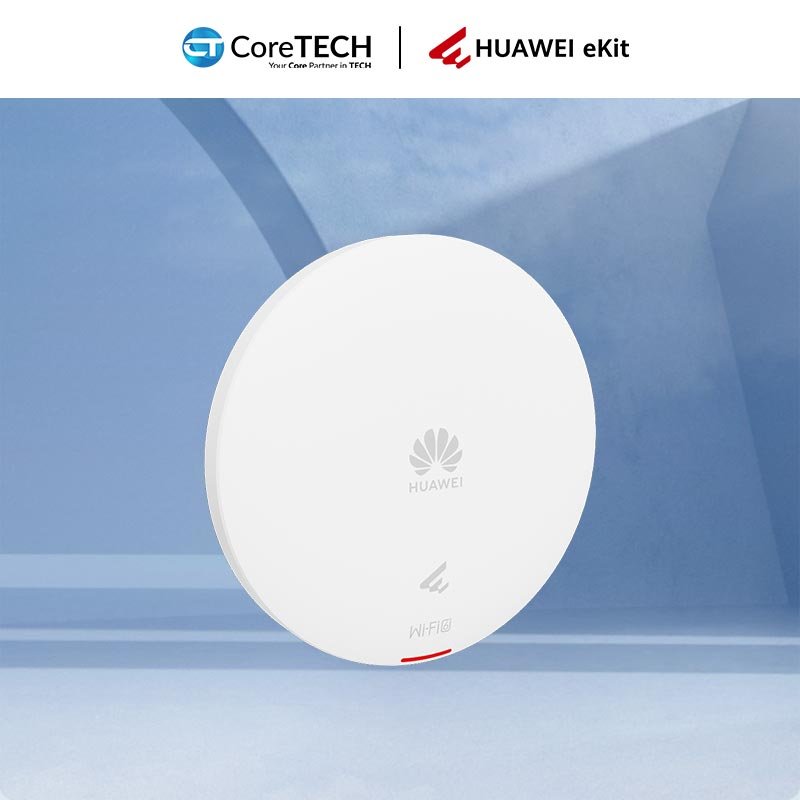

Huawei eKit AP361

The Huawei eKit AP361 is a compact, high-performance Wi-Fi 6 settled access point designed to deliver reliable and efficient wireless connectivity for small and medium-sized business environments such as offices, schools, retail stores, and healthcare facilities. It supports dual-radio operation and offers a device rate of up to 1.775 Gbps, ensuring smooth performance for everyday business applications and moderate-density deployments.

Built to support up to 80 recommended concurrent users, the AP361 delivers stable and consistent connectivity with 23 dBm transmit power and a smart antenna system that enhances signal strength and coverage. With an optimal coverage range of up to 20 meters, along with PoE support and flexible installation options, it ensures easy deployment, seamless coverage, and efficient network management—making it an ideal choice for modern indoor wireless networks.

As the Authorized Elite Distributor of Huawei eKit in Pakistan, CoreTECH provides genuine Huawei eKit solutions with competitive pricing, warranty, and expert technical support, making it the trusted partner for reliable business connectivity.

Wi-Fi standard	2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax
Installation Type	Wall,Ceiling (Solid Wall/Gypsum Board/Spring Tee/Flat-Edge T-Rail/Channel Rail/Beam/Threaded Rod)
Optimal Signal Distance (m)	20
Device Rate	1.775 Gbps
Maximum number of physical ports on the entire device	GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Radio number	2
Maximum channel bandwidth [MHz]	Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz): 80 MHz
Maximum transmit power	2.4 GHz: 20 dBm/chain 23 dBm (combined power) 5 GHz: 20 dBm/chain 23 dBm (combined power) Note: In V200R024C10 and later versions, the combined power is increased to 23 dBm by default. In versions earlier than V200R024C10, the combined power is only 20 dBm. To increase the transmit power for the AP running an earlier version, install the corresponding patch by referring to the announcement on the official website.
MIMO spatial streams	Radio 0 (2.4 GHz): 2×2 Radio 1 (5 GHz): 2×2
Maximum power consumption [W]	9.4
Input voltage range [V]	PoE: 802.3af
Dimensions without packaging (H x W x D) [mm(in.)]	Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	200 mm x 231 mm x 61 mm (7.87 in. x 9.09 in. x 2.40 in.)
Weight without packaging [kg(lb)]	0.45 kg (0.99 lb)
Weight with packaging [kg(lb)]	0.75 kg (1.65 lb)
Long-term operating temperature [°C(°F)]	0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Radio interface	Built-in smart antennas
Antenna gain	2.4G: 4 dBi/chain (peak) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain)
Operating frequency band	2.4GHz,5GHz
