Huawei ekit Gateway AR730

The Huawei ekit Gateway AR730 is a high-performance, versatile enterprise router designed to meet the demanding connectivity and security needs of modern networks. Engineered for efficiency and reliability, it ensures stable, secure, and scalable operations for businesses of all sizes.

Equipped with a powerful forwarding capability of 9 Mpps to 25 Mpps, the AR730 delivers fast and seamless data processing, supporting up to 1,200 connected terminals simultaneously. This makes it an excellent choice for environments with high traffic and multiple endpoints, from corporate offices to branch networks.

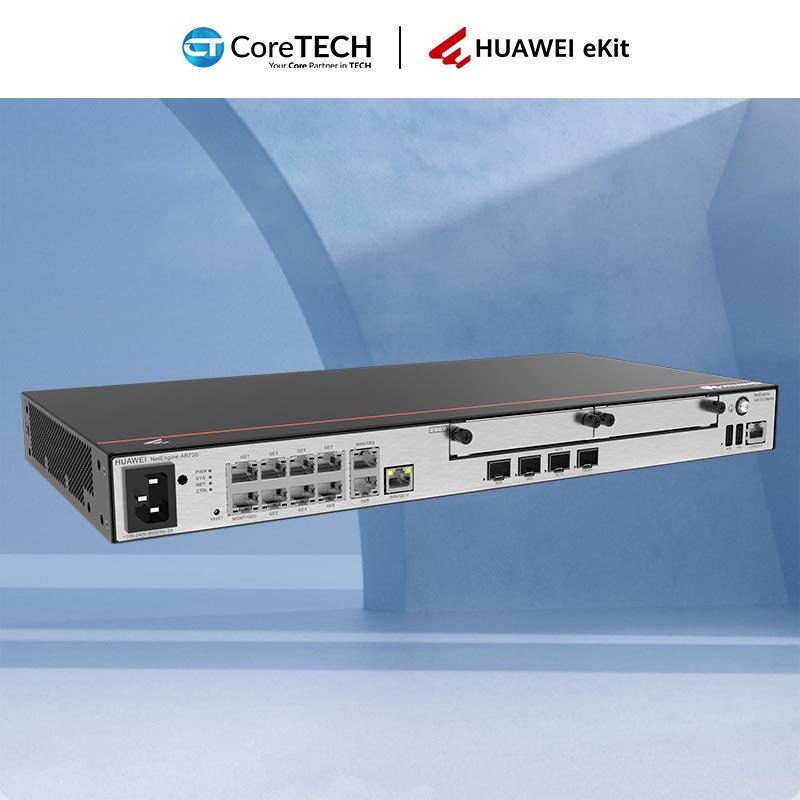

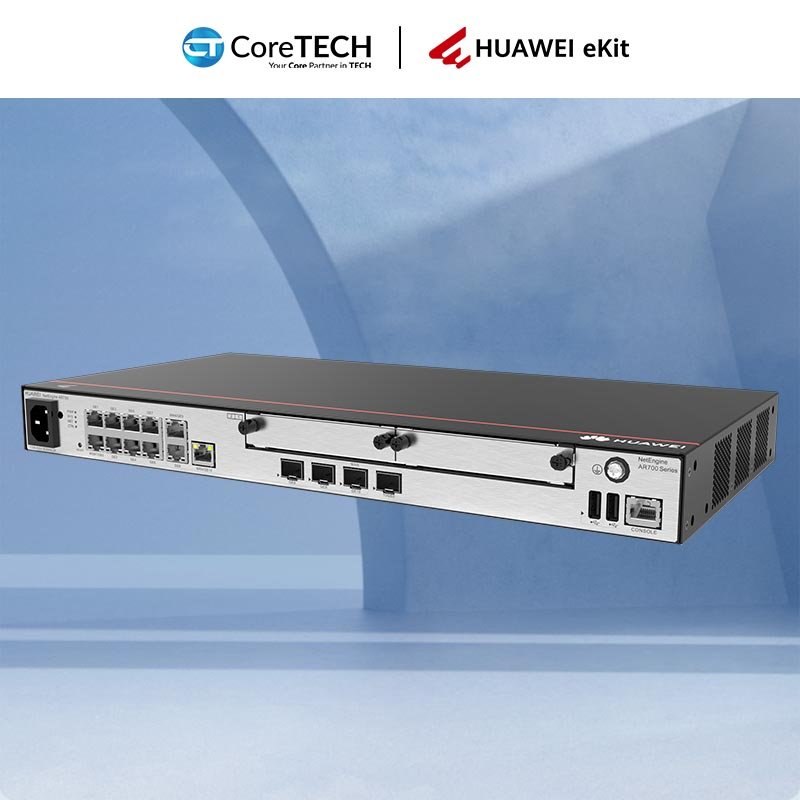

The AR730 offers flexible port configurations to suit a variety of deployment scenarios. Its fixed WAN interfaces include 2 × GE combo ports and 1 × 10GE optical port (compatible with GE optical), while the fixed LAN setup features 1 × GE combo port and 8 × GE electrical ports, which can also be configured as WAN ports when needed. This flexibility allows organizations to optimize network architecture without compromising performance.Compact yet robust, the device measures 43.6 mm × 442 mm × 220 mm, making it easy to integrate into existing network racks. With enterprise-grade features, the Huawei AR730 ensures secure, reliable, and high-speed connectivity, helping businesses maintain continuity, protect data, and efficiently manage network resources.

As the Authorized Elite Distributor of Huawei eKit in Pakistan, CoreTECH provides genuine Huawei eKit solutions with competitive pricing, warranty, and expert technical support, making it the trusted partner for reliable business connectivity.

Forwarding performance:	9 Mpps to 25 Mpps
Number of connected terminals	1200
Installation type	Rack,Work bench,Against the wall
Dimensions without packaging (H x W x D) [mm(in.)]	– Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 220.4 mm (1.75 in. x 17.4 in. x 8.68 in.) – Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 225.2 mm (1.75 in. x 17.4 in. x 8.87 in.)
Chassis height [U]	1
Dimensions with packaging (H x W x D) [mm(in.)]	90 mm x 570 mm x 390 mm (3.54 in. x 22.44 in. x 15.35 in.)
Weight with packaging [kg(lb)]	4.6 (10.12)
Weight without packaging [kg(lb)]	3.2 (7.04)
RTC	Supported
Typical power consumption [W]	28
Maximum power consumption [W]	33
Power supply mode	AC built-in
Number of power modules	1
Input voltage range [V]	90 V to 264 V, 47 Hz to 63 Hz
Maximum output power [W]	70
Safety regulation certification	IEC/EN/UL 60950-1 IEC/EN/UL 62368-1 GB 4943.1
EMC certification	EN 55032 EN 55035 CISPR 32 GB 9254 EN 55024 CISPR 24 GB/T 17618 EN 300 386 VCCI-CISPR 32 AS/NZS CISPR32 IEC 61000-3-2/EN 61000-3-2 IEC 61000-3-3/EN 61000-3-3
Types of fans	Built-in
Number of fan modules	1
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F) Note: When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
LAN ports	8 x GE electrical, 1 x GE combo
WAN ports	2 x GE combo, 1 x 10GE optical (SFP+)
Airflow	Left-to-right airflow
Environmental standards compliance	RoHS REACH WEEE
