Huawei eKit AP661

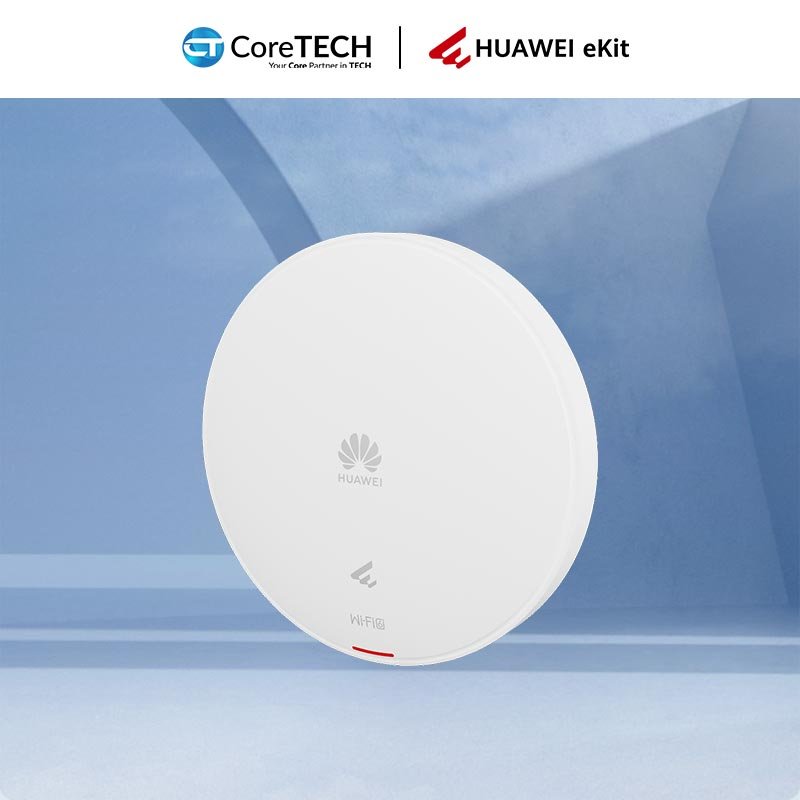

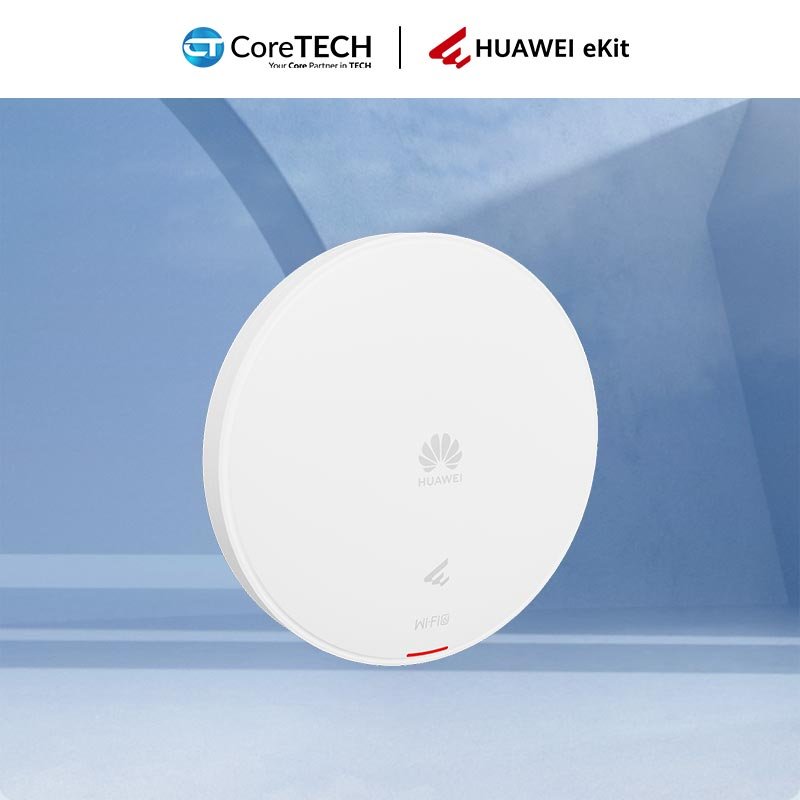

The Huawei eKit AP661 is a powerful, enterprise-grade settled access point designed to deliver ultra-fast, stable, and intelligent wireless connectivity. Built with advanced Wi-Fi 6 technology, it ensures exceptional performance in high-density environments such as offices, campuses, and commercial spaces.

With a blazing device rate of up to 6.575 Gbps, the AP661 enables seamless streaming, faster downloads, and low-latency networking experiences. Its tri-radio architecture enhances network efficiency by intelligently distributing traffic, ensuring optimal performance across multiple devices.

Engineered for scalability, the AP661 comfortably supports up to 300 concurrent users (recommended) and can handle a maximum of 1536 access users, making it ideal for growing organizations with demanding connectivity needs.

The device features 26 dBm transmit power combined with a smart antenna system, delivering strong signal penetration and reliable coverage. With an optimal coverage range of up to 30 meters, it ensures consistent connectivity across wide indoor spaces.

As the Authorized Elite Distributor of Huawei eKit in Pakistan, CoreTECH provides genuine Huawei eKit solutions with competitive pricing, warranty, and expert technical support, making it the trusted partner for reliable business connectivity.

Wi-Fi standard	2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax
Installation Type	Wall,Ceiling (Solid Wall/Gypsum Board/Spring Tee/Flat-Edge T-Rail/Channel Rail/Beam/Threaded Rod),Junction Box (86 mm/1-Gang 120 mm/Octagonal/2-Gang 120 mm)
Optimal Signal Distance (m)	30
Max Number of Access Users	1536
Recommended Number of Access Users	300
Device Rate	6.575 Gbps

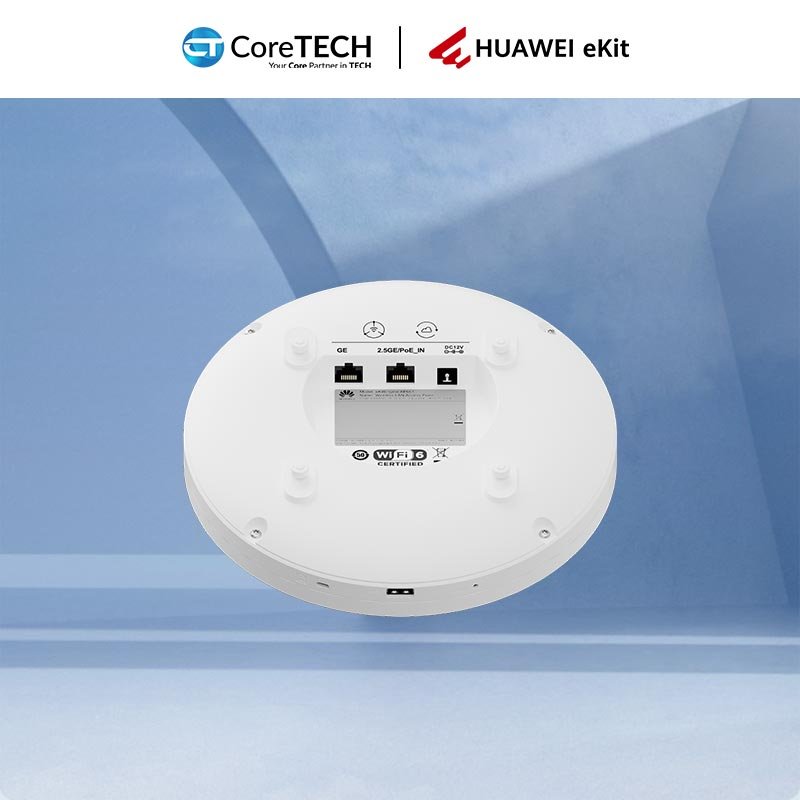

Maximum number of physical ports on the entire device	2.5GE (RJ45) x 1, 100M/1000M/2.5G auto-sensing GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Radio number	3
Maximum channel bandwidth [MHz]	Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz-H): 80 MHz Radio 2 (5 GHz-L): 160 MHz
Maximum transmit power	2.4 GHz: 22 dBm/chain 25 dBm (combined power) 5 GHz (2×2): 20 dBm/chain 23 dBm (combined power) 5 GHz (4×4): 20 dBm/chain 26 dBm (combined power) BLE: < 10 dBm
MIMO spatial streams	Radio 0 (2.4 GHz): 2×2 Radio 1 (5 GHz-H): 2×2 (high frequency band: 5490–5850 MHz) Radio 2 (5 GHz-L): 4×4 (low frequency band: 5150–5330MHz)
Maximum power consumption [W]	21.2 (excluding USB), 802.3at/af power supply
Input voltage range [V]	DC: 12 V ± 10% PoE: 802.3at/af
Dimensions without packaging (H x W x D) [mm(in.)]	Diameter x depth: 220 mm x 50 mm (8.66 in. x 1.97 in.)
Weight without packaging [kg(lb)]	1.08 kg (2.38 lb)
Long-term operating temperature [°C(°F)]	–10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Radio interface	Built-in smart antennas
Antenna gain	2.4G: 4 dBi/chain (peak value) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain) BLE: 4 dBi
Operating frequency band	2.4GHz,5GHz
