Huawei eKit AP761

The Huawei eKit AP761 is a robust, high-performance outdoor Wi-Fi 6 access point engineered to deliver reliable, high-speed wireless connectivity in demanding environments. Designed for scenarios such as campuses, industrial sites, outdoor venues, and large public areas, it ensures stable coverage and seamless connectivity even under harsh environmental conditions.

Featuring dual-radio operation, the AP761 supports a device rate of up to 1.775 Gbps, enabling efficient handling of bandwidth-intensive applications and high user density. It is optimized for scalability, supporting up to 120 recommended concurrent users and a maximum of 1,024 access users, making it suitable for both medium and large-scale deployments.

With a powerful transmit capability of up to 28 dBm and an advanced smart antenna system, the AP761 enhances signal coverage, improves penetration, and minimizes interference—ensuring consistent performance across wide outdoor areas. Its flexible connectivity options, including one GE electrical port and one SFP optical port, allow for versatile network integration and extended deployment distances.Built for durability and performance, the AP761 combines high-capacity wireless access with enterprise-grade reliability, making it an ideal solution for outdoor environments that require secure, scalable, and high-performance Wi-Fi coverage.

As the Authorized Elite Distributor of Huawei eKit in Pakistan, CoreTECH provides genuine Huawei eKit solutions with competitive pricing, warranty, and expert technical support, making it the trusted partner for reliable business connectivity.

Wi-Fi standard	2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax
Installation Type	Wall,Pole
Optimal Signal Distance (m)	180
Max Number of Access Users	1024
Recommended Number of Access Users	120
Device Rate	1.775 Gbps

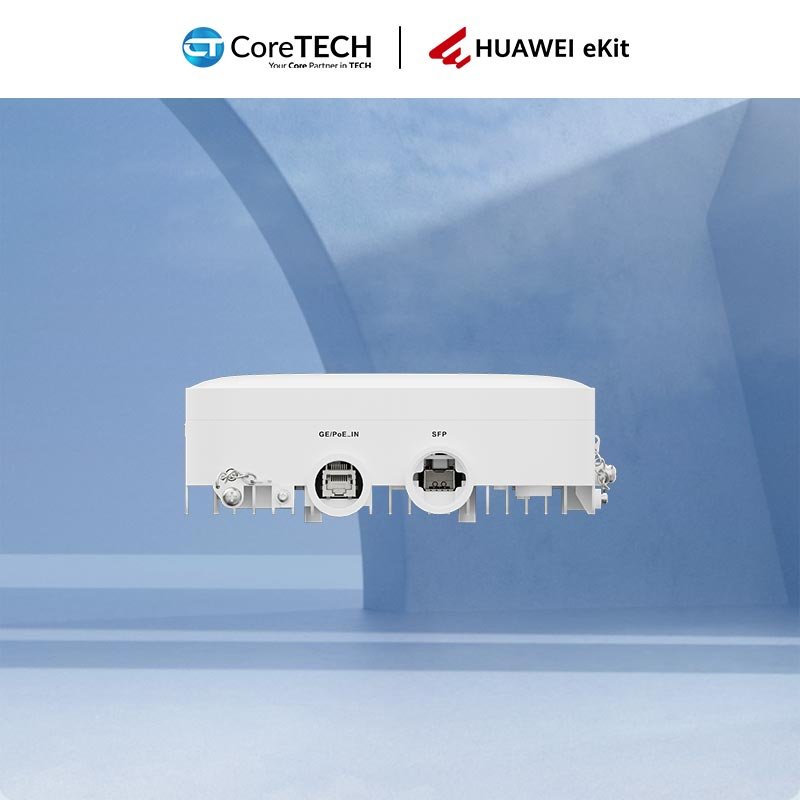

Maximum number of physical ports on the entire device	GE (RJ45) x 1, 10M/100M/1000M auto-sensing GE optical port (SFP)
Radio number	2
Maximum channel bandwidth [MHz]	Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz): 80 MHz
Maximum transmit power	2.4G: 28 dBm (Max) 5G: 27 dBm (Max) Note: This is the total MIMO radio power, which is the same as: 2.4G: 25 dBm/chain (Max) 5G: 24 dBm/chain (Max) BLE: < 10 dBm
MIMO spatial streams	Radio 0 (2.4 GHz): 2×2 Radio 1 (5 GHz): 2×2
Maximum power consumption [W]	17.7
Input voltage range [V]	PoE: 802.3at/af
Dimensions without packaging (H x W x D) [mm(in.)]	69 mm x 200 mm x 200 mm (2.72 in. x 7.87 in. x 7.87 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	160 mm x 470 mm x 390 mm (6.30 in. x 18.50 in. x 15.35 in.)
Weight without packaging [kg(lb)]	1.91 kg (4.21 lb)
Weight with packaging [kg(lb)]	3.73 kg (8.22 lb)
Long-term operating temperature [°C(°F)]	–40°C to +65°C (–40°F to +149°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Long-term operating relative humidity [RH]	0% RH to 100% RH
Radio interface	Built-in directional antennas
Antenna gain	2.4G: 10 dBi 5G: 11 dBi BLE: 5 dBi
Operating frequency band	2.4GHz,5GHz
Service port surge protection	6 kA in common mode
Ingress protection level (dustproof/waterproof)	IP68
