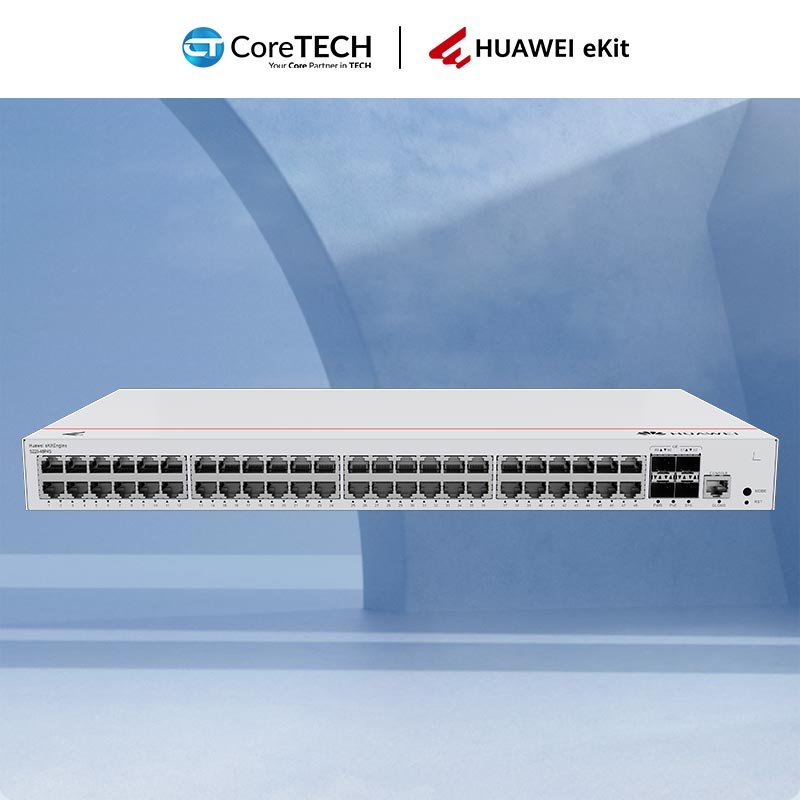

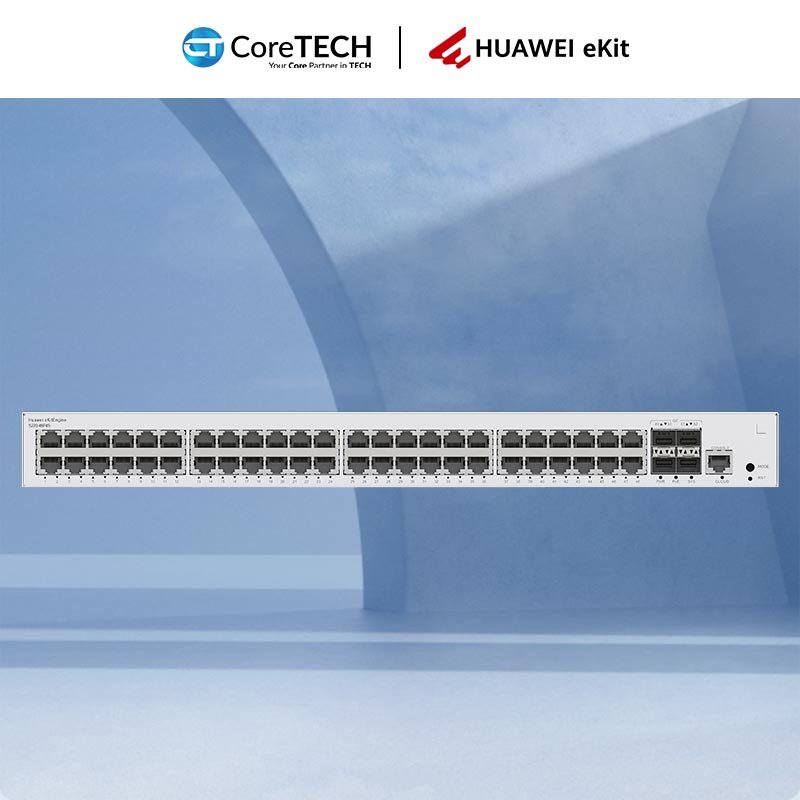

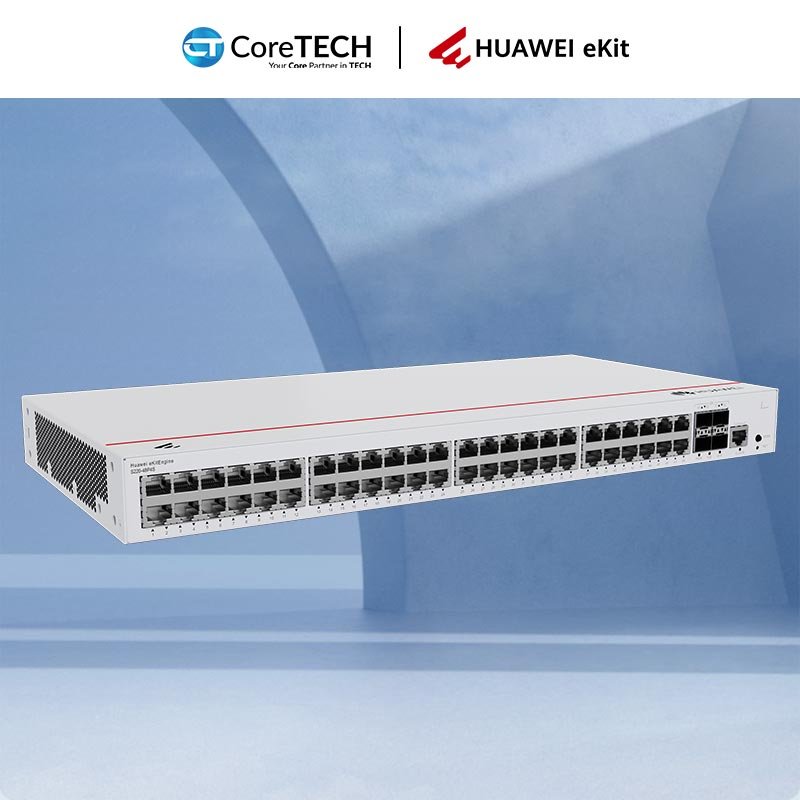

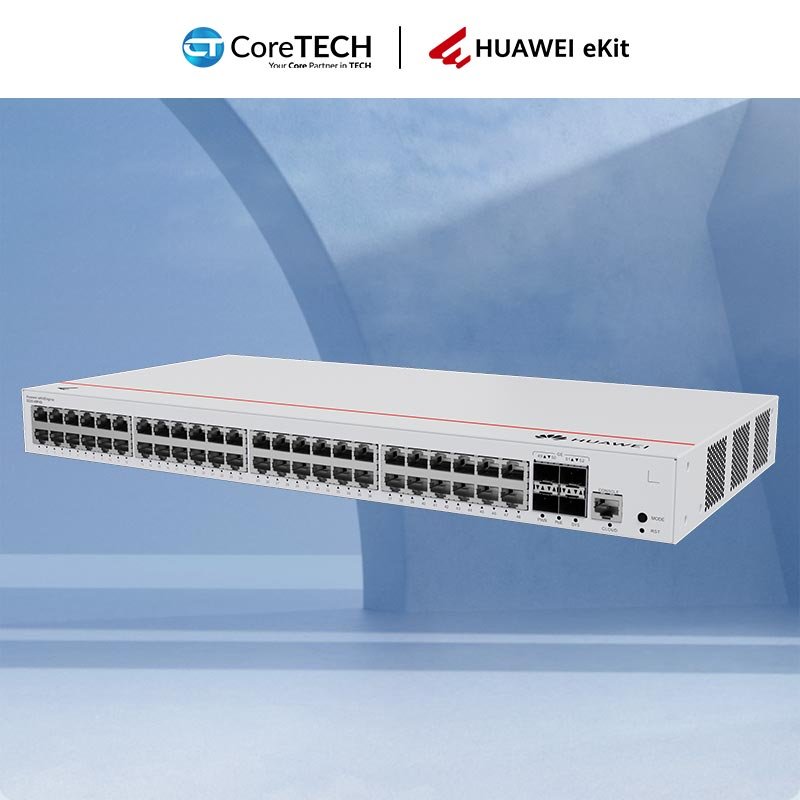

Huawei eKit L2 Switch S220-48P4S
The Huawei eKit L2 Switch S220-48P4S is a reliable, high-performance networking solution designed for enterprise and business environments such as offices, campuses, and commercial spaces. Engineered for stability and efficiency, it ensures smooth data transmission and consistent network performance—making it ideal for modern, high-demand networks.
Built with a robust design, this Layer 2 switch delivers high-speed connectivity and scalable deployment options to support growing network infrastructures. Its built-in AC power supply simplifies installation, while its efficient architecture ensures dependable operation with minimal downtime.
With a large number of Gigabit ports and dedicated SFP uplinks, the S220-48P4S provides fast and flexible connectivity for multiple devices. Its strong switching performance makes it well-suited for high-density environments that require reliable and continuous data flow.
As the Authorized Elite Distributor of Huawei eKit in Pakistan, CoreTECH provides genuine Huawei eKit solutions with competitive pricing, warranty, and expert technical support, making it the trusted partner for reliable business connectivity.
Specifications:
| Switching capacity |
104 Gbit/s |
| Packet forwarding rate |
77 Mpps |
| GE SFP |
4 (1G) |
| GE RJ45 |
48 (PoE+) (1G/100M/10M) |
| PoE |
Supported |
| Maximum PoE power consumption [W] |
380 |
| Certification |
EMC certification Safety certification Manufacturing certification |
| Chassis material |
Metal |
| Static power consumption [W] |
34.04 |
| Dimensions without packaging (H x W x D) [mm(in.)] |
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] |
90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Installation type |
Rack mounting,Desk mounting,Wall mounting |
| Weight without packaging [kg(lb)] |
3.24 (7.14) |
| Weight with packaging [kg(lb)] |
4.29 kg (9.46 lb) |
| Typical power consumption [W] |
48.64 |
| Maximum power consumption [W] |
– Without PoE: 63.70 W – Full PoE load: 462.80 W (PoE: 380 W) |
| Number of fans modules |
2 |
| Long-term operating temperature [°C(°F)] |
-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Long-term operating relative humidity [RH] |
5% RH to 95% RH, non-condensing |
| Power supply mode |
AC built-in |
| Input voltage range [V] |
– AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz – High-voltage DC input: 190 V DC to 290 V DC |
| Power supply surge protection [kV] |
Differential mode: ±6 kV; common mode: ±6 kV |
| Types of fans |
Built-in |
| Heat dissipation mode |
Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction |
Air intake from left and air exhaust from right |
