Huawei eKit S110-8T2ST

The Huawei eKit S110-8T2ST is a reliable and high-performance networking solution designed to meet the needs of modern business environments such as small offices, retail stores, smart classrooms, and surveillance systems. Built with a focus on efficiency and seamless integration, it ensures stable connectivity and smooth data transmission—making it an ideal choice for organizations that require consistent and uninterrupted network performance.

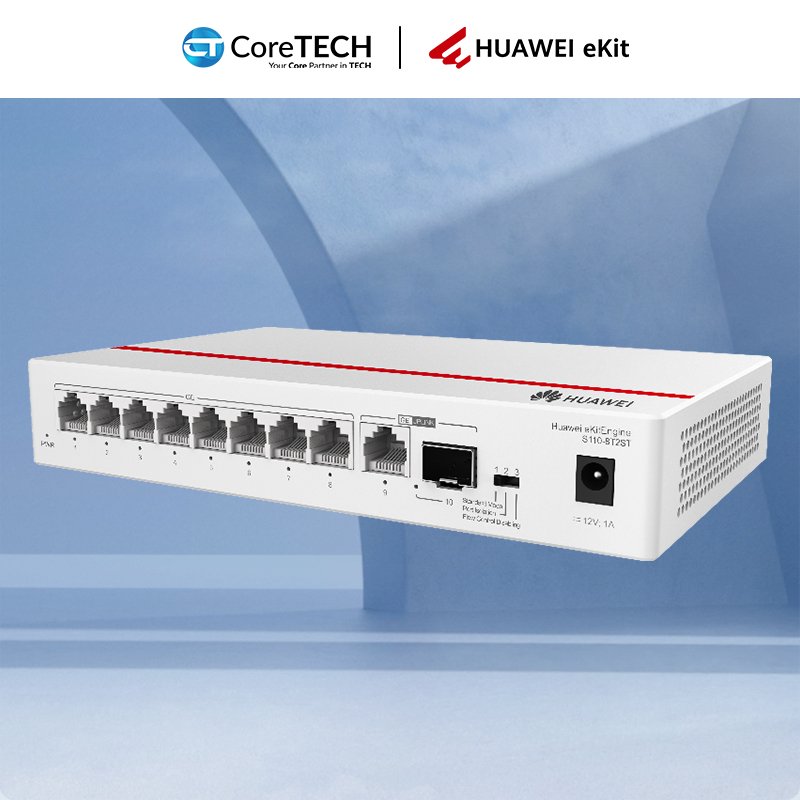

Featuring 8 x 10/100/1000BASE-T ports, 1 x GE SFP port, and 1 x 10/100/1000BASE-T uplink port, this switch offers flexible and scalable connectivity options for a variety of network setups. Its optimized design supports efficient communication between devices, enabling businesses to build reliable and future-ready network infrastructures.

With a packet forwarding rate of 14.88 Mpps and a switching capacity of 20 Gbit/s, the S110-8T2ST ensures fast and efficient handling of network traffic, reducing latency and maintaining performance even under heavy workloads. Its robust construction and dependable operation make it a durable, cost-effective solution for organizations looking to strengthen and expand their network capabilities.

As the Authorized Elite Distributor of Huawei eKit in Pakistan, CoreTECH provides genuine Huawei eKit solutions with competitive pricing, warranty, and expert technical support, making it the trusted partner for reliable business connectivity.

Specification:

Dimensions without packaging (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 35 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 36.5 mm x 210.0 mm x 131.7 mm (1.44 in. x 8.27 in. x 5.19 in.)
Chassis height	0.8
Installation type	Desk mounting,Wall mounting
Weight without packaging	1.11 (2.45)
Typical power consumption	11
Static power consumption	4
100% power consumption	11
Maximum number of physical ports on the entire device	10
Long-term operating temperature	0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity	5% RH to 95% RH (non-condensing)
Long-term operating altitude	0–5000 m (0–16404 ft.)
Storage altitude	0-5000 m (0-16404 ft.)
Power supply mode	Power adapter
Rated input voltage	Power adapter input: 100–240 V AC; 50/60 Hz Power adapter output: 56 V DC
Input voltage range	Power adapter input: 90 V AC to 264 V AC; 47 Hz to 63 Hz
Service port surge protection	Common mode: ±4 kV
Power supply surge protection	Differential mode: ±6 kV; common mode: ±6 kV
