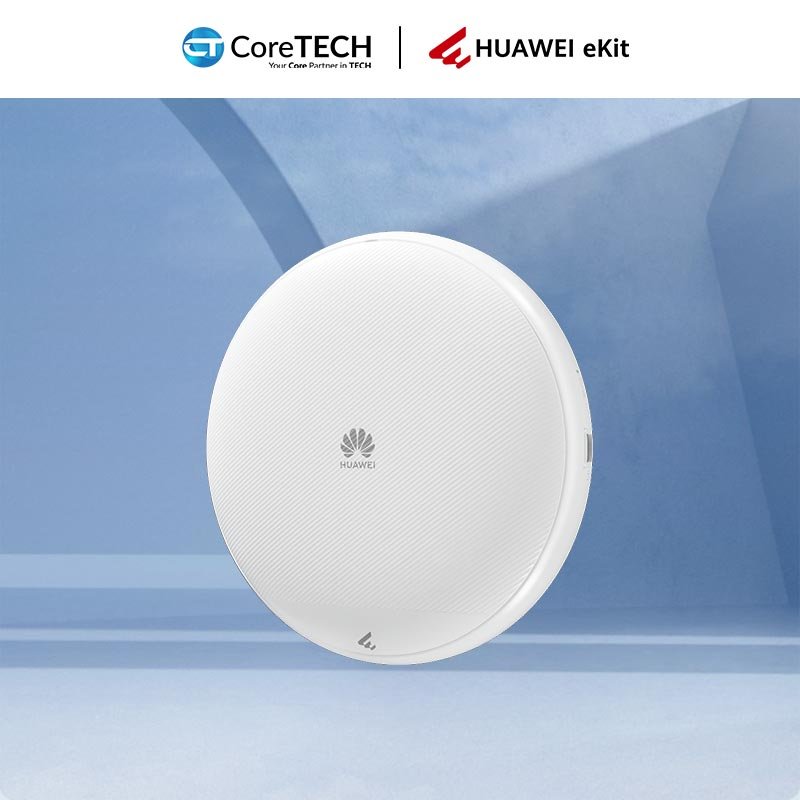

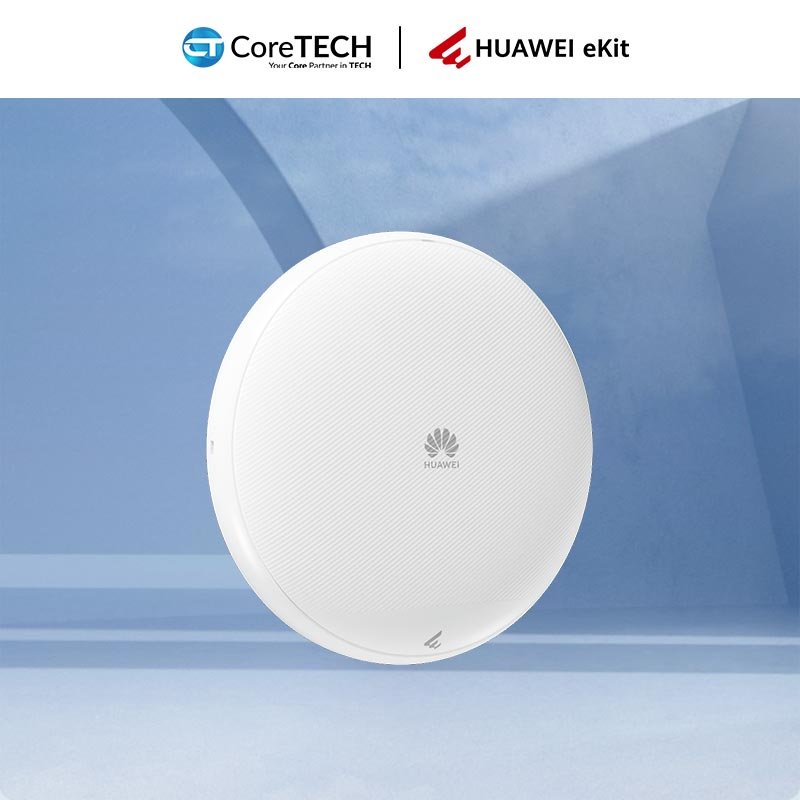

Huawei eKit AP673

The Huawei eKit AP673 is a cutting-edge settled access point designed to meet the demands of modern, high-density wireless environments. Powered by the latest Wi-Fi 7 technology, it delivers exceptional speed, efficiency, and reliability for businesses seeking future-ready networking solutions.

With an impressive device rate of up to 13.66 Gbps, the AP673 ensures lightning-fast data transmission, ultra-low latency, and seamless connectivity for bandwidth-intensive applications. Its advanced tri-radio architecture optimizes network performance by intelligently managing traffic across multiple bands, providing a smooth and stable user experience.

Designed for scalability, the AP673 supports up to 300 concurrent users (recommended) and can handle a maximum of 1024 access users, making it ideal for enterprise offices, educational institutions, and large indoor venues.

Equipped with 26 dBm transmit power and a smart antenna system, the AP673 delivers strong signal coverage and enhanced penetration. With an optimal coverage range of up to 40 meters, it ensures consistent and reliable connectivity across expansive indoor spaces.

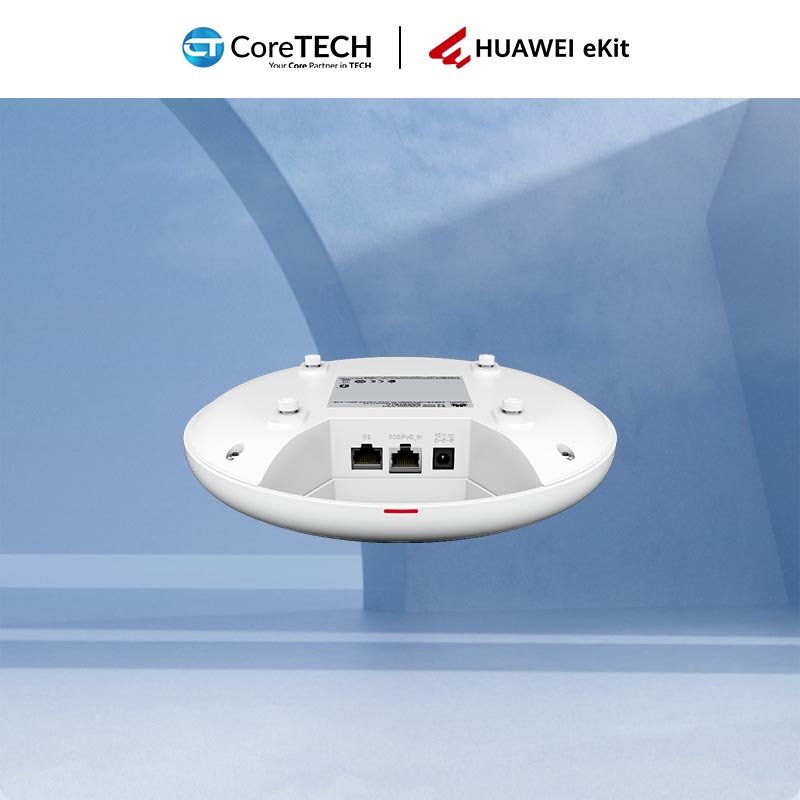

The AP673 also offers flexible and high-speed connectivity options with multiple ports, including:

As the Authorized Elite Distributor of Huawei eKit in Pakistan, CoreTECH provides genuine Huawei eKit solutions with competitive pricing, warranty, and expert technical support, making it the trusted partner for reliable business connectivity.

Wi-Fi standard	2.4 GHz: 802.11b/g/n/ax/be 5 GHz: 802.11a/n/ac/ac Wave 2/ax/be 6 GHz: 802.11a/ax/be
Installation Type	Wall,Ceiling (Solid Wall/Gypsum Board/Spring Tee/Flat-Edge T-Rail/Channel Rail/Beam/Threaded Rod),Junction Box (86 mm/1-Gang 120 mm/Octagonal/2-Gang 120 mm)
Optimal Signal Distance (m)	40
Max Number of Access Users	1024
Recommended Number of Access Users	300
Device Rate	13.66 Gbps
Maximum number of physical ports on the entire device	5GE (RJ45) x 1, 100M/1000M/2500M/5000M auto-sensing GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Radio number	3
Maximum channel bandwidth [MHz]	Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz): 80 MHz Radio 2 (6 GHz): 320 MHz
Maximum transmit power	2.4 GHz: 20 dBm/chain 23 dBm (combined power) 5 GHz (2×2): 20 dBm/chain 23 dBm (combined power) 6 GHz (4×4): 20 dBm/chain 26 dBm (combined power)
MIMO spatial streams	Radio 0 (2.4 GHz): 2×2 Radio 1 (5 GHz): 2×2 Radio 2 (6 GHz): 4×4
Maximum power consumption [W]	21.1 W (excluding USB)
Input voltage range [V]	DC: 12 V ± 10% PoE: 802.3at/af
Dimensions without packaging (H x W x D) [mm(in.)]	Diameter x depth: 220 mm x 45 mm (8.66 in. x 1.77 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	72 mm x 260 mm x 255 mm (2.83 in. x 10.24 in. x 10.04 in.)
Weight without packaging [kg(lb)]	0.745 kg (1.64 lb)
Weight with packaging [kg(lb)]	1.230 kg (2.71 lb)
Long-term operating temperature [°C(°F)]	–10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Radio interface	Built-in smart antennas
Antenna gain	2.4 GHz: 4 dBi/chain (peak gain) 2 dBi (combined gain) 5 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain) 6 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain)
Operating frequency band	2.4GHz,5GHz,6GHz
